Right Angle Expansion Valves

The 90º right angled thermostatic expansion valve has been used on vehicles since the early days of mobile air conditioning. There are two basic designs, internally and externally equalized valves, neither of which have seen many variations over the years. Although a reliable valve, the capillary tubes used for the temperature sensing bulb and the external equalizer can become kinked or broken. Damaged capillary tubes will make the valve inoperable. Many O.E. manufacturers have moved away from capillary tubed 90º valves and replaced them with H-type block valves or orifice tubes. However, the 90º valve is still used today on heavy duty and agricultural vehicles.

  • Application specific
  • Standard or metric threads
  • May require internally equalized or externally equalized design with two fitting options
  • rightanglevalve700px_location1ajpg

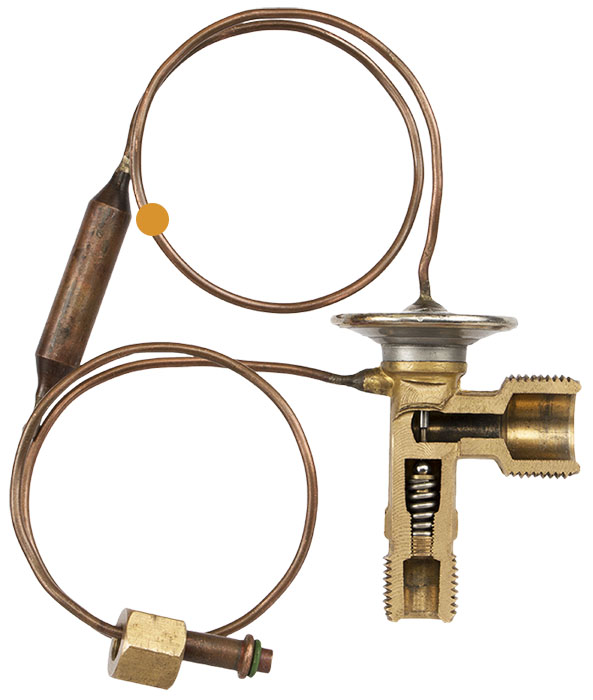

    Remote Bulb and Capillary Tube (Temperature Sensing Element)

  • rightanglevalve700px_location2ajpg

    Power Valve

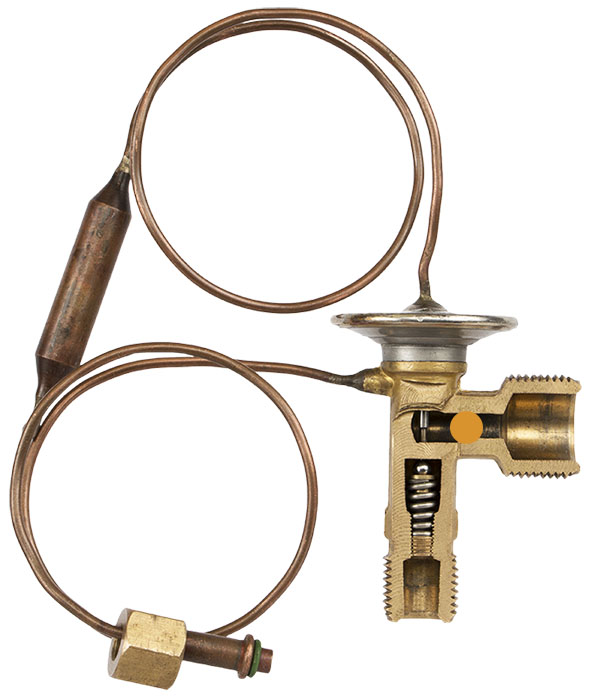

  • rightanglevalve700px_location3ajpg


  • rightanglevalve700px_location4ajpg

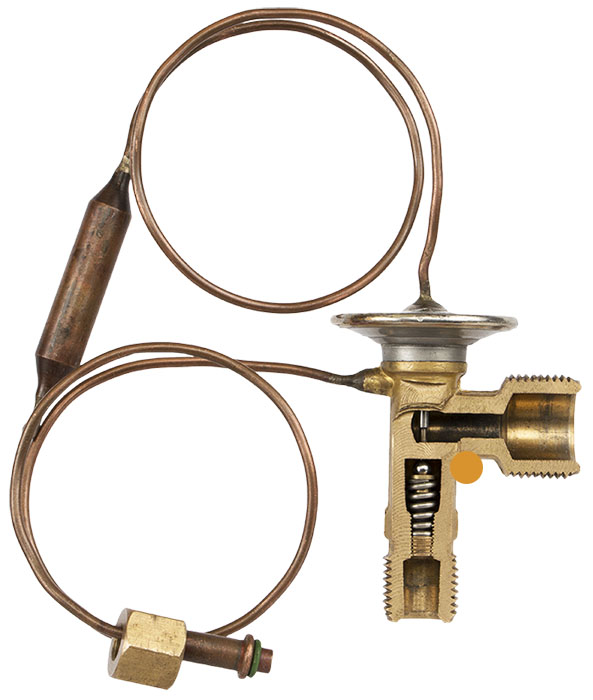

    Ball and Seat

  • rightanglevalve700px_location5ajpg


  • rightanglevalve700px_location6ajpg

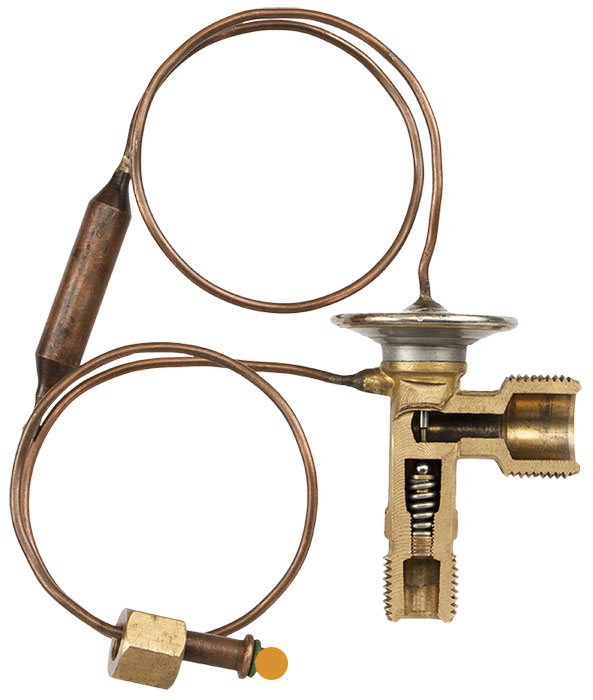

    External Equalizing Capillary Tube
